MaxPowa R65m
Thoughtful design
built to perform

The R Range balances performance, environmental impact and low cost of ownership very effectively.

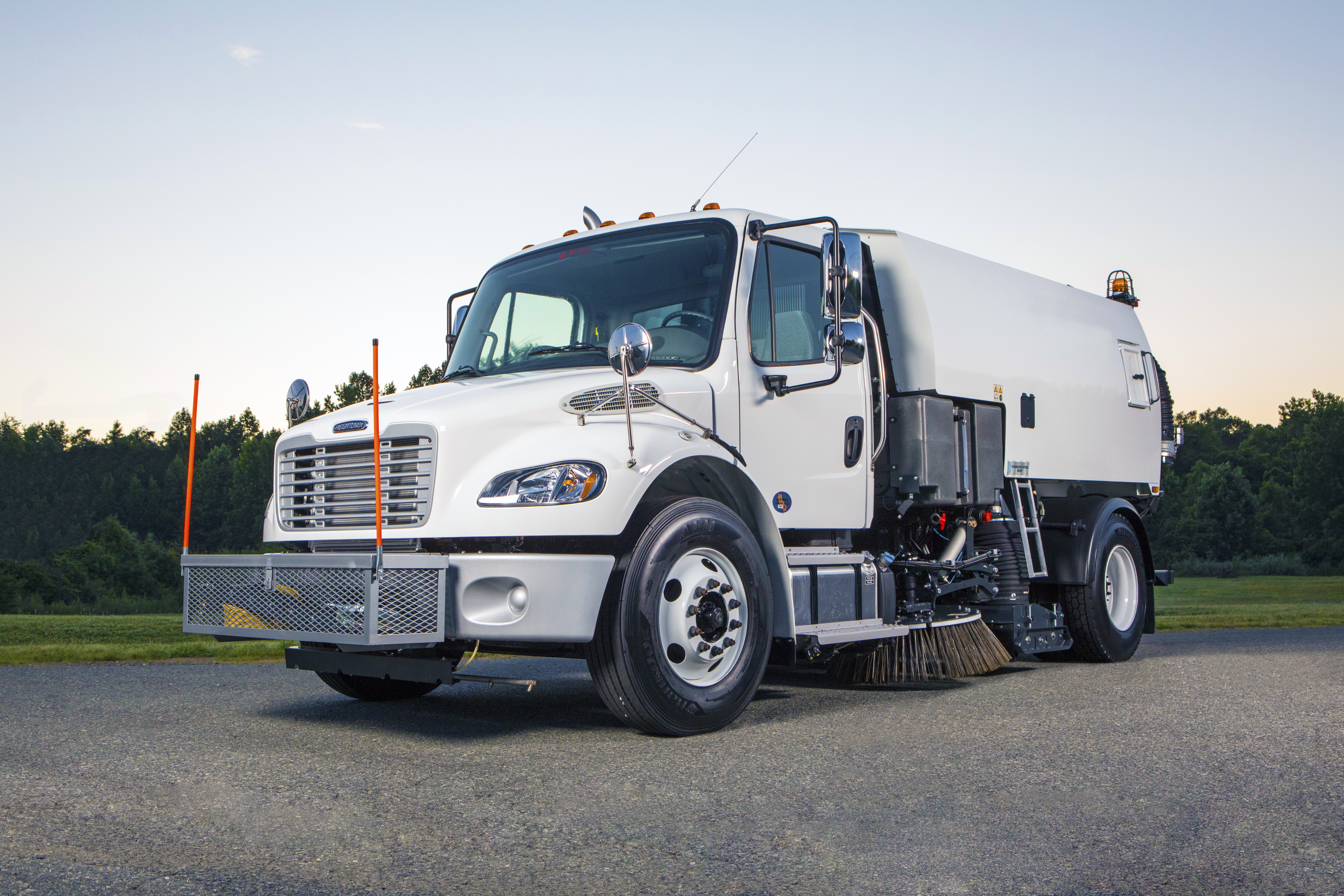

R65m Regenerative Street Sweeper in the city

Designed to last in the toughest environments, the R Range hopper is constructed of stainless steel. The MaxPowa R65m provides cost effective, efficient road sweeping. Regenerative air circulation allows for large forward facing digger gutter brooms and a full width suction to maximize sweeping speed. Combined with ergonomic operator controls and low running costs, the MaxPowa R65m provides an ideal solution to long low cambered roads and urban environments.

Get to know the MaxPowa R65m

Technology

Fingertip Accessibility

The MaxPowa R65m has in-cab controls with audible and visual indicators, along with a set and forget pick-up head, unhanded sweep gear components and a centralized key system.

The ergonomic in-cab controls incorporate an audible and visual raised hopper warning, sweeper fuel gauge, engine hour counter, tachometer and a low level water indicator as standard.

Performance

Sweep and Scrub

The MaxPowa R65m has an energy-efficient fan system with a fluid coupler set-up gearbox transmission.
It’s 12' (3650 mm) sweep path and aggressive 43" (1100 mm) leading arm digger-type gutter brooms provide the operator the ability to sweep/scrub in front of the 92.5” (2350 mm) pick-up hood.

Performance

Supreme Stainless Steel

The MaxPowa R65m is as indestructible as it gets. With a stainless steel 8.5 yd³ (6.55 m³) hopper, dust separator, fan, and hopper filtration screens, it’s ready for any challenge.
The MaxPowa R65m regenerative air street sweepers provide the best power to fan speed ratio in the industry.

Reliability

Stainless Steel Hoppers

Bucher Municipal is the only street sweeper manufacturer to offer as standard hoppers totally constructed - not just lined - of 1.4003 stainless steel – the very best for this application. Our sweepers provide 250-times better corrosion resistance than standard or even 304 stainless steel. We are also the only manufacturer in the industry to offer a lifetime warranty on our hopper bodies.

Key specifications

8.5 yd³ (6.55 m³) hopper capacity
290 gallon (1100 liter) water tank
9 gauge stainless steel hopper with a lifetime warranty
Wireless discharge control
Trailing sweepgear
Suited to 13-16.5 ton chassis range

Key Features

Dust Suppression System

Hopper

Pick-up Hood

Fan system

Controls

Electrical System

Gutter Broom

Environmentally Optimized

The MaxPowa R65m features a dust suppression system using an array of water sprays located in the suction tube, internal body screen ductwork prior to fan entry, around the pick up hood, and the gutter brooms.
A twin diaphragm water pump is driven hydraulically from a direct-coupled motor; self-priming and able to run dry without damage. Water winterization purge system.

Superior Size and Accessibility

8.5 yd³ (6.55 m³) hopper and full engine cowling fabricated from 9 gauge stainless steel with a lifetime warranty. Access doors fitted on both sides with a safety grab handle and step to allow for screen and body load inspection.

A separate polyethylene water tank incorporates anti-surge baffles and filled via a water hydrant.

Easy Pickup

93" (2350 mm) full-width low-noise pick-up hood spring-suspended with skids with 14" (350 mm) diameter suction and pressure hoses.
In-cab variable control vacuum enhancer. 144” (3650 mm) sweep path with 2 gutter brooms.

Impeller Perfection

Heavy-duty stainless steel dynamically balanced impeller with eight self-cleaning abrasion resistant blades. Operational speed variable between 2400 – 3000 rpm to easily adapt to application.

Dynamic Controls

In-cab integrated 7” CAN bus screen allowing data capture, on-board diagnostics, and in-cab daily checks. Includes audible and visual warning for hopper raised, fuel gauge, low-level lost water, engine tachograph meter, and more.

Integrated Efficiency

All internal and external wiring conforms to IP65 and IP67 standards-waterproof and dustproof. 12v system is integrated with the truck chassis for easy troubleshooting. Electric over the hydraulic backup system.

Flexible Sweeping

Large 43” (1100mm) forward-facing digger-style, unhanded design. In-cab down pressure and variable speed control 0-135 rpm. Three pre-set lateral working positions (narrow/standard/extended).

Product variations

MaxPowa R65m with rear mounted wanderhose

Exceptionally good for gulley suction and drain clearance, this rear-mounted wander hose is pendant controlled reducing manual labor. The hose and boom are hydraulically lifted and can be used to the left or right-hand side of a vehicle.

Additional extensions can be added to the equipment for cleaning deep drains, gullies, and catch pits.

MaxPowa R65m with gutterbroom extension override

The MaxPowa R65m is available with an optional variable gutter broom positioning system. This option allows the gutter brooms to be controlled from the back and brought in while sweeping by overriding the extended position.
